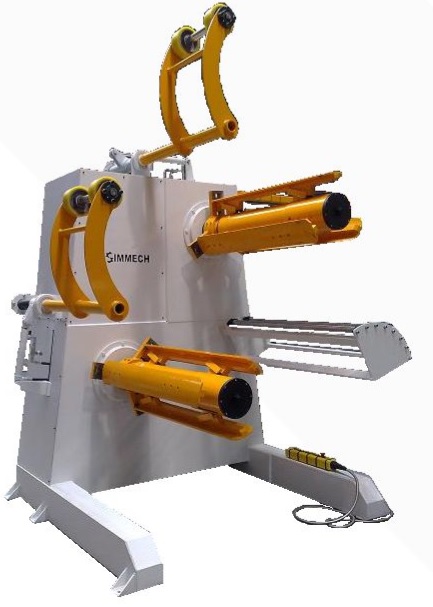

Double decoiler - one side
Model Decoiler - Arm 2
|
Characteristic Double decoiler may be loaded with 2 x 6000 kg mass, powered,one side bearing, mandres is hydraulically expandable. Decoiler runs in feedback mode for better control of coil's rotation speed and decoiling fluency. Coil is loaded directly on the mandrel with lifting cart in half automatic mode. |
Technical specification
| Parameter | Value |
| Coil mass |
Max. 2 x 6000 kg |
| Expandable madrel's axis dimension |
diameter 450-620mm (internal coil's diameter -508mm) |
| Coil's width |
min. 250 mm / max. 1500 mm |
| Max. coil's dimaeter |
1100mm |
| Coil's changeover method |
Half automatic method where the coil is loaded directly on the cantilevered mandrel by coil lifter the process is vcontrolled by operator. The mandrel is expanded hydraulically. |
| Control | Soft start and stop during sheet's uncoiling for jerks suppresion. |
